Motorized Electrical Co2 Beam Expander 1064nm Laser Machine Parts

Place of Origin : china

MOQ : 1 set

Price : negotiated

Payment Terms : Western Union, T/T

Supply Ability : 1000set

Delivery Time : 3-5 workdays

Packaging Details : carton

Application : Laser Cutting,Laser Engraving/cutting machine,Laser Marking,engraving&cutting,Laser Engraving

Wavelength : 1064nm,10.6um

Warranty : 1 years

Condition : New

Diameter : Optional

Working area : Optional

Contact Now

The magnification of the beam expanding mirror can be controlled by electronic software. The system can react quickly and accurately control the magnification and good spot stability. In addition, the item can be used in related machines, for example laser cleaning machine.

Motorized Electrical Co2 Beam Expander 1064nm Laser Machine Parts

Model	wavelength	Enlargement Factor	Maximum Entrance Pupil Diameter	Maximum Light Spot	Incident End Thread	Maximum Shell Length	Maximum Shell Diameter
Model	wavelength	Enlargement Factor	(mm,1/e2)	Diameter(mm)	Interface	(mm)	(mm)
BXZ-355-1-8x-MOT-V3	355	1-8x	2	16	-	188	95.5*71.5
BXZ-532-1-4x-G-MOT	532	1-4X	5	20	-	168	58*70
BEX-1064-10X-MOT	1064	10x	1.5	15	-	81.5	110*63
BEx-1064-1X-D8-MOT	1064	1x	8	8	-	66	84*65
BxZ-1064-1-8x-MOT-V3	1064	1-8x	3	24	-	188	75.5*71.5

Product Tags:

1064nm Laser Machine Parts

1064nm co2 beam expander

co2 beam expander 1064nm

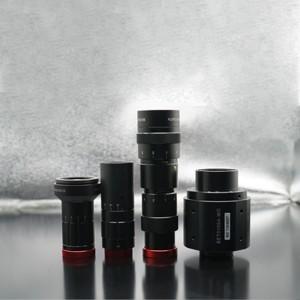

Motorized Electrical Co2 Beam Expander 1064nm Laser Machine Parts Images
